ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

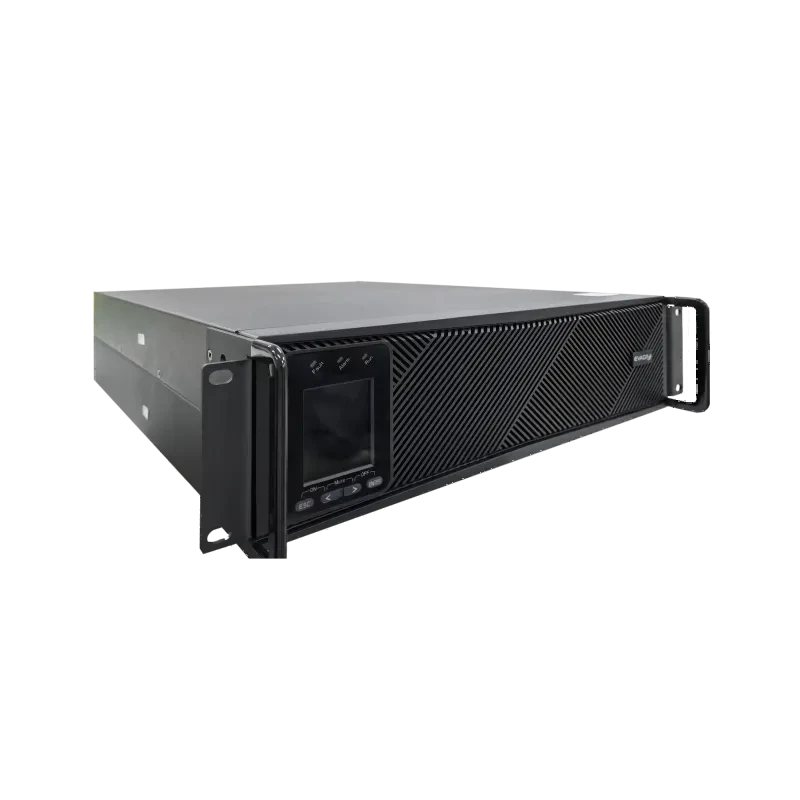

The EVADA DTH33-R Series is a new-generation high-frequency online UPS solution, delivering reliable and energy-efficient power protection for mission-critical environments. Engineered for versatility and performance, this three phase UPS system is designed for applications such as telecommunications, financial institutions, public transportation, Internet services, and more. With capacities ranging from 10kVA to 20kVA, the DTH33-R is your ideal rack-mount UPS for compact, scalable, and intelligent power backup.
| Model | DTH33-10KRL | DTH33-15KRL | DTH33-20KRL |
| Capacity | 10kVA | 15kVA | 20kVA |
| Input | |||
| Input and output standards | 3 phase in, 3 phase out (by default); 1 phase in, 1 phase out; 3 phase in, 1 phase out | ||
| Rated voltage | 208/220/230/240 Vac (1P+N+PE); 380/4--/415 Vac (3P+N+PE) | ||
| Voltage range | 80-280 Vac (phase voltage) | ||
| Frequency range | 40-70 Hz | ||
| Power factor | ≥0.99 @ 100% load | ||
| THDi | ≤2% @ 100% linear load; ≤5% @ 100% nonlinear load | ||
| Output | |||
| Rated voltage | 208/220/230/240 Vac (1P+N+PE); 380/4--/415 Vac (3P+N+PE) | ||
| Voltage accuracy | <1% | ||
| Power factor | 1.0 | ||
| Output frequency | 50/60 Hz ± 0.1 | ||
| THDu | ≤1% @ 100% linear load; ≤3% @ 100% nonlinear load | ||
| Switching time | 0ms | ||
| Overload | <115%, long run; 115%-130%, 10 min; 130%-155%, 1 min | ||
| Bypass overload | 200% | ||
| Other Features | |||
| Efficiency | >96% (mains power) | ||
| Battery | Lead-acid battery/lithium-ion battery (optional fuction) | ||
| Battery units | By default 16 units (12-20 units optional, derating below 16 units) | By default 32 units (28-50 units optional, derating below 30 units) | |
| Charging current | 1-12A (by default 5A) | ||
| W*D*H (mm) | 430*500*130 | ||
| Net Weight (kg) | 22.5 | ||
| Rough Weight (kg) | 25.5 | ||
| Altitude | 2000m, derating according to IEC 62040-3 when above 2000m | ||
| Working temperature | -5~40℃ | ||
| Humidity | 0~95% non-condensing | ||
| Communication | RS232, RS485, EPO(remote, local), BMS(optional), parallel(optional), smart slot(optional), maintenance switch detection interface, output circuit breaker detection interface | ||
| Display | LCD touch screen, LED light, function buttons | ||
| Optional parts | Lithium battery communication, parallel components, battery temperature compensation options, SNMP card, dry contact, smart slot, graded power-down programmable terminals | ||
| Protection | Output overload, short curcuit; battery unvervoltage, overvoltage; charging overheat, short circuit; abnormalities on AC input voltage, frequency and phase sequence; UPS overheat, fan failure, etc. | ||
| Alarm | Overload, mains power abnormity, UPS faults, battery undervoltage, etc. | ||
| *Input voltage below 165V requires derating | |||
| *Specifications are subject to change without prior notice | |||
