HQ-MR 120KVA-150KVA is the latest industry-leading fully digital uninterruptible power supply product launched by our company. The system adopts a fully modular design, with a capacity configuration of 120KVA-150KVA. It is simple to expand, easy to maintain, and has high cost performance and availability. It is ideal for large and medium-sized data computer rooms. ideal configuration.

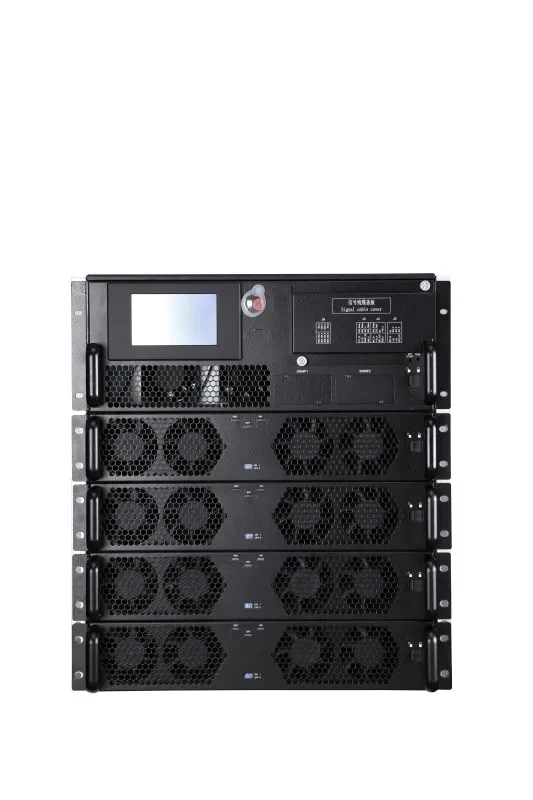

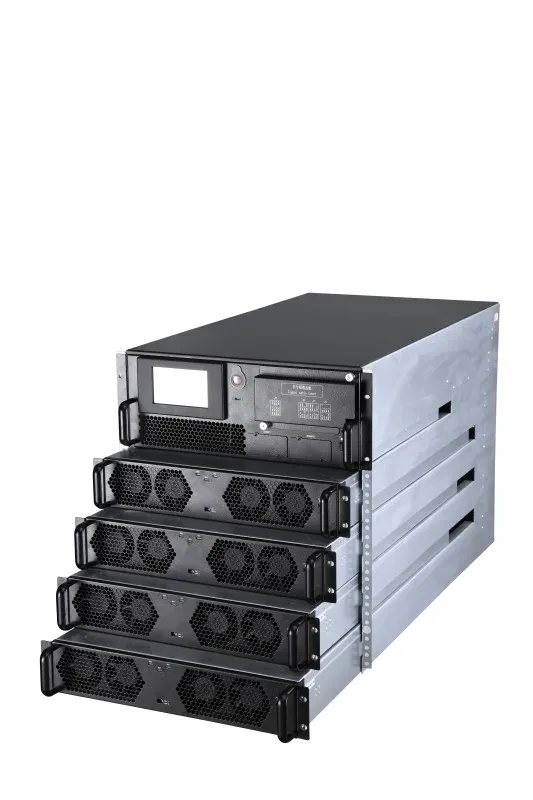

ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
The EVADA HQ-MR Online Rackmount Modular UPS is designed for online power delivery, optimizing space efficiency with its rackmount configuration. This scalable system offers a robust 20kVA capacity, with options ranging from 120kVA to 150kVA, ensuring reliable and efficient power management to meet diverse and evolving needs.
Suitable for data center, healthcare, finance, telecom, commercial and industrial building, process control equipment, etc.
SPECIFICATION
| Model | HQ-MR120 | HQ-MR150 | HQ-MR180 |
| Rated Capacity | 40kVA | 50kVA | 60kVA |
| Power Module Capacity | 120kVA/120kW | 150kVA/150kW | 180kVA/180kW |
| Power Module Quantity | 3 | ||
| Input | |||
| Wiring Method | 3 Phase+N+PE | ||
| Rated Voltage | 380/400/415VAC(line-line) | ||
| Rated Frequency | 50/60Hz | ||
| Voltage Range | 304~478Vac*Voltage Range(full load) | ||
| Frequency Range | 40~70Hz | ||
| Power Factor | >0.99 | ||
| THDi | <3%(linear full load);<5%(non-linear full load) | ||
| Bypass | |||
| Rated Voltage | 380/400/415VAC(line-line) | ||
| Voltage Range | Factory setting -20%~+15%; settable, upper limit:+10%,+15%,+20%,+25%; lower limit:-10%,-15%,-20%,-30%,-40% | ||
| Frequency Range | Rated frequency 50/60Hz; frequency range can be set ±0.5Hz, ±1Hz, ±2Hz, ±3Hz, ±10Hz(by default) | ||
| Overload Capacity | 110% for long run; >150% for 200ms | ||
| Battery | |||
| Battery Voltage | ±240VDC(384~528VDC;32~44 units settable, defaulted by 40 units) | ||
| Output | |||
| Rated Voltage | 380/400/415VAC(line-line) | ||
| Rated Frequency | 50/60Hz | ||
| Power Factor | 1 | ||
| Voltage Accuracy | ≤±1.0%@balanced load;≤±5.0%@unbalanced load | ||
| Frequency Accuracy | 50/60Hz±0.01% | ||
| Frequency Tracking Range | Settable, ±0.5Hz~±5Hz;±3Hz | ||
| THDu | ≤2%(100% linear load),≤4%(nonlinear load) | ||
| Three-phase Phase Accuracy | 120°±1° | ||
| Crest Factor | 3：1 | ||
| Overload | <105%, long run; <110%, 60mins; 110~125%, 10mins;>125~150%, 1mins;>150%, 200ms | ||
| System | |||
| System Efficiency | ≥96%@double conversion mode,≥99%@ECO mode | ||
| Display | 10" LCD touch screen | ||
| Wiring | Back in | ||
| Language | Chinese, Enghlish; optional: Russian, Italian, Spanish, German, etc. | ||
| Protection Class | IP20 | ||
| Communication | RS232/RS485/SNMP card(optional)/dry contact(optional) | ||
| Working Condition | Temperature:0~40℃;humidity: 0~95℃(no condensation) | ||
| Noise | <60dB@1 meter | ||
| Altitude | <1000 meters, no derating,>1000 meters, derating 1% if every 100 meters increased | ||
| Cabinet Type | 3 Modules | ||
| Size | |||
| System W*D*H(mm) | 482.6*850*711(16U) | ||
| Module W*D*H(mm) | 440*720*130(3U) | ||
| Weight | |||
| System(kg) | 66 | ||
| Module(kg) | 32.5(40kVA)/33.5(50kVA)/35(60kVA) | ||
