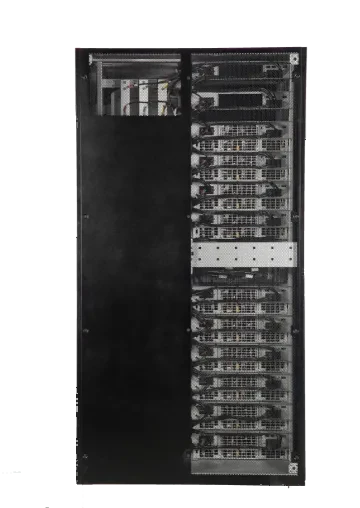

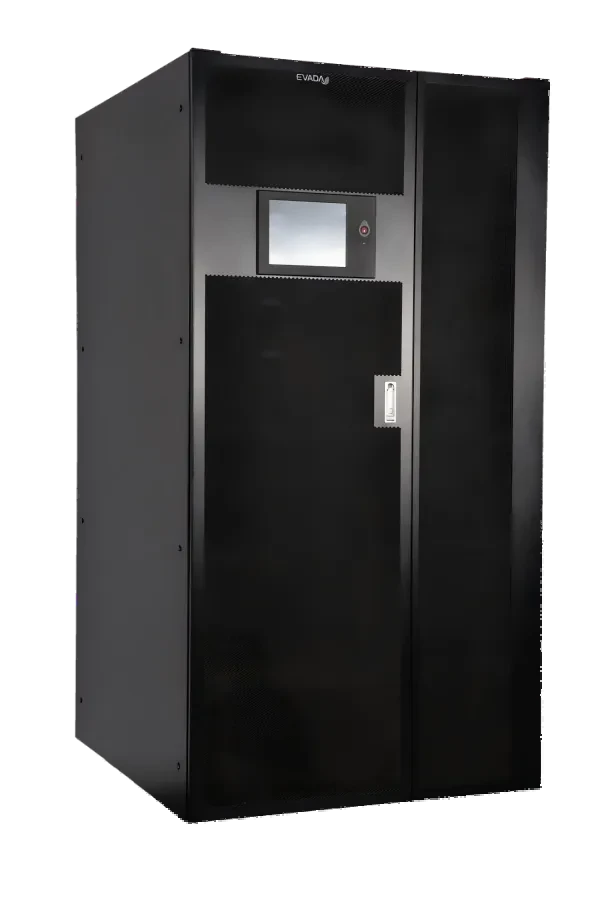

HQ-M 400KVA-600KVA Modular UPS – a scalable UPS device offering flexibility with 50kVA UPS modules (available in the range of 400kVA to 600kVA). This UPS power supply is engineered for reliability and efficiency, providing adaptable power solutions for a wide range of industry applications.
ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
Utilizations: This thress phase modular UPS is commonly used in financial services, telecommunications, education, transportation power, tax administration, healthcare, enterprise operations, petrochemical industries, and more.
SPECIFICATION
| Model | HQ-M200/50 | HQ-M300/50 | HQ-M500/50 | HQ-M600/60 | HQ-M840/60 | HQ-M1000/50 | HQ-M1200/60 | ||
| Rated Capacity | 200kVA | 300kVA | 500kVA | 600kVA | 840kVA | 1000kVA | 1200kVA | ||
| Power Module Capacity | 50kVA | 60kVA | 50kVA | 60kVA | |||||
| Power Module Quantity | 4 | 6 | 10 | 14 | 20 | ||||
| Input | |||||||||
| Wiring Method | 3 Phase+N+PE | ||||||||
| Rated Voltage | 380/400/415VAC(line-line) | ||||||||
| Rated Frequency | 50/60Hz | ||||||||
| Voltage Range | 304VAC～478VAC(line-line)full load;304VAC～228VAC(line-line)load derating linearly from 100%to 80% | ||||||||
| Frequency Range | 40Hz~70Hz | ||||||||
| Power Factor | >0.99 | ||||||||
| THDi | <3%(linear full load);<5%(non-linear full load) | ||||||||
| Bypass | |||||||||
| Rated Voltage | 380/400/415VAC(line voltage) | ||||||||
| Voltage Range | Factory setting-20%~+15%;settable,upper limit:+10%,+15%,+20%;lower limit-10%,-20%,-30%,40% | ||||||||
| Frequency Range | Settable(±1Hz,±3Hz,±5Hz) | ||||||||
| Overload Capacity | 110%for long run,>150%for 200ms | ||||||||
| Battery | |||||||||
| Battery Voltage | ±240VDC(384～528VDC;32～44 units settable,defaulted by 40 units) | ||||||||
| Output | |||||||||
| Rated Voltage | 380V/400V/415V(line-line) | ||||||||
| Power Factor | 0.9 (1 optional) | ||||||||
| Rated Frequency | 50/60Hz | ||||||||
| Voltage Accuracy | ≤±1.0%@balanced load;≤±5.0%@unbalanced load | ||||||||
| Frequency Accurac | 50/60Hz±0.01% | ||||||||
| Frequency Tracking Range | Settable,±0.5Hz~±5Hz;factory setting±3Hz | ||||||||
| THDu | ≤2%(100%linear load),≤4%(nonlinear load) | ||||||||
| Three-phase Phase Accuracy | 120°±1° | ||||||||
| Crest Factor | 3:1 | ||||||||
| Overload | <105%,long run;<110%,60mins;110～125%,10mins;>125～150%,1mins;>150%,200ms | ||||||||
| System | |||||||||
| Efficiency | 96.5%@double conversion mode | ||||||||
| Display | 10.4"touch screen+LED | ||||||||
| Wiring | Support top in and bottom in | ||||||||
| Standard | EC62040-1-1;IEC62040-2;IEC62040-3 | ||||||||
| Protection Class | P20 | ||||||||
| Optional | SNMP card、modbus card、parallel components,lightning protection components,dust-proof net,LBS,editable dry contact | ||||||||
| Working Condition | Temperature:0~40℃;humidity:0~95%(no condensation) | ||||||||
| Noise | <70dB @1meter | ||||||||
| Altitude | <1000 meters,no derating,>1000 meters,derating 1%if every 100 meters increased | ||||||||
| Cabinet Type | 4+1 Modules | 6+1 Modules | 10+2 Modules | 14 Modules | 20 Modules | ||||
| Size | |||||||||
| System | WxDxH(mm) | 600x850x2000 | 600x1100x2000 | 1000x1100x2000 | 1800x850x2000 | 2000x1100x2000 | |||
| Module | WxDxH(mm) | 440x720x130(3U) | |||||||
| Weight | |||||||||
| System(kg) | 190 | 250 | 500 | 530 | 980 | 1100 | |||
