ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

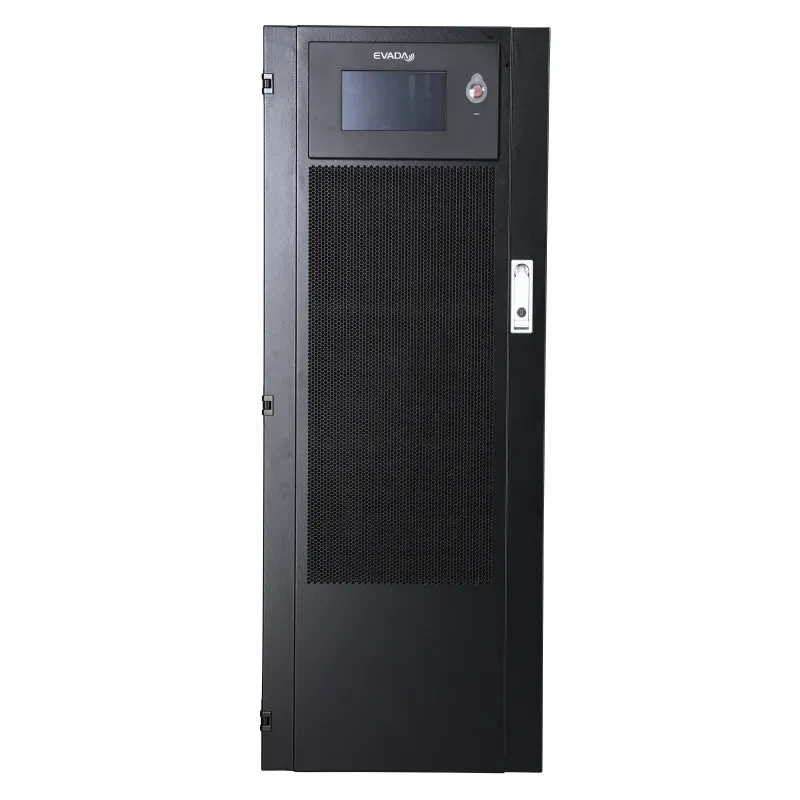

DTH33 160-200kVA Online Double Conversion UPS, a robust solution ensuring a reliable backup power supply. Its online double conversion ups architecture guarantees clean power delivery, shielding critical systems from voltage fluctuations. Enhanced by lithium ion UPS technology, it's a reliable UPS (also available in 30kVA/40kVA/50kVA/60kVA/80kVA) offers efficient energy storage, minimizing maintenance costs and providing a range of powerful options.
| Model | DTH33-160KL | DTH33-200KL |
| Capacity | 160kVA | 200kVA |
| Input | ||
| Rated Voltage | (3 Phase+N+PE) 380/400/415VAC | |
| Voltage Range | 304～478VAC (line voltage) full load; 208~304VAC (line voltage) | |
| Frequency Range | 50/60Hz (range: 40Hz ~ 70Hz) | |
| Power Factor | ≥0.99 | |
| THDi | ＜3％ (100% linear load）; ＜5％ (100% nonlinear load） | |
| Output | ||
| Voltage | 380/400/415VAC (3 Phase+N) | |
| Voltage Accuracy | ±1% | |
| Frequency Range | Synchronization Range: ±0.5Hz, ±1Hz, ±2Hz, ±3Hz（configurable） Battery Mode: 50Hz ± 0.1Hz or 60Hz ± 0.1Hz | |
| Overload | 105%~110%, 60min; 110%~125%, 10min; 125%~150%, 1min; ＞150%, 0.2sec | |
| Power Factor | 1 | 0.9 |
| THDu | ≤2% @ (100% linear load)；≤4% @ (100% nonlinear load) | |
| Crest Factor | 3:1(Maximum) | |
| Switching Time | 0ms | |
| Efficiency | ||
| Inverter Mode | 96% | |
| Battery | ||
| Voltage | Default: ±192VDC, 360~528V (30-44 units configurable) with neutral wire | |
| System | ||
| Display | 7" LCD touch screen | |
| Communication | RS232, RS485, smart card slot*2 | |
| Environment | ||
| Operating Temperature | 0~40℃ (battery life will be shortened when temperature>25℃) | |
| Humidity | 0~95% (non-condensing) | |
| Altitude | 1000m no derate, >1000m derate 1% per 100m | |
| Physical | ||
| W*D*H (mm) | 600*850*1600 | |
| Weight (kg) | 385 | 395 |
