ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

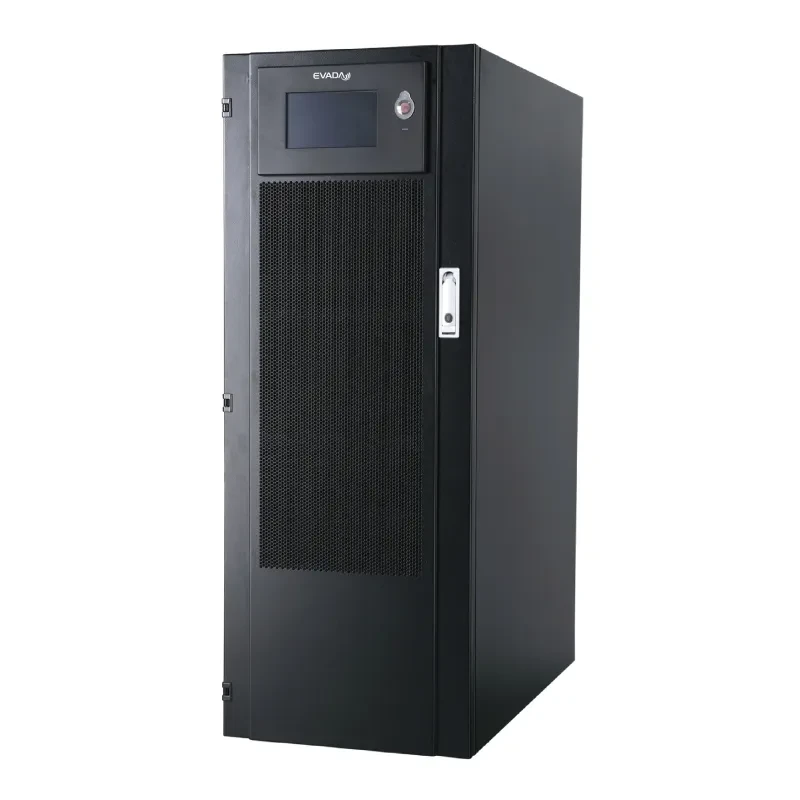

DTH33 40KVA-120KVA On Line UPS stands as a parallel tower UPS, concurrently functioning as a 3 phase battery backup. Infused with critical power UPS features and PFC UPS capabilities, it embodies the essence of a UPS power generator. EVADA DTH33 UPS ensures not only optimized power distribution but also a stable supply, coupled with eco-friendly utilization.
| Model | DTH33-40KL | DTH33-50KL | DTH33-60KL | DTH33-80KL | DTH33-100KL | DTH33-120KL | |
| Capacity | 40kVA | 50kVA | 60kVA | 80kVA | 100kVA | 120kVA | |
| Input | |||||||
| Rated Voltage | 380/400/415VAC(3 Phase+N+PE) | ||||||
| Voltage Range | 304~478VAC (line voltage) full load; 208~304VAC (line voltage) | ||||||
| Frequency Range | 50/60Hz (range:40Hz~70Hz) | ||||||
| Power Factor | ≥0.99 | ||||||
| THDi | <3% (100% linear load);<5% (100% nonlinear load) | ||||||
| Output | |||||||
| Voltage | 380/400/415VAC(3 Phase+N+PE) | ||||||
| Voltage Accuracy | ±1% | ||||||
| THDu | ≤2% (100% linear load);≤4% (100% nonlinear load) | ||||||
| Power Factor | 1.0 | 0.9(optional 1.0) | 1.0 | 0.9(optional 1.0) | |||
| Frequency Range | Synchronization Range | ±0.5Hz,±1Hz,±2Hz,±3Hz(configurable) | |||||
| Battery Mode | 50Hz±0.1Hz or 60Hz±0.1Hz | ||||||
| Overload | 105%~110%, 60 min;110~125%,10min; 125~150%,1min;>150%,0.2s | ||||||
| Creat Factor | 3:1(maximum) | ||||||
| Switching Time | (Main power↔battery) | 0ms | |||||
| (Inverter↔bypass) | 0ms | ||||||
| Efficiency | |||||||
| Inverter Mode | 95% | ||||||
| Battery | |||||||
| Voltage | Default:±192VDC,360~528V(30-44 units configurable) with neutral wire | ||||||
| System | |||||||
| Display | 7" LCD touch screen | ||||||
| Communication | RS232,RS485,smart card slot*2 | ||||||
| Environment | |||||||
| Operating Temperature | 0~40℃(battery life will be shortened when temperature>25℃) | ||||||
| Humidity | 0~95% (non-condensing) | ||||||
| Altitude | 1000m no derate, >1000m derate 1% per 100m | ||||||
| Noise | ≤60dB@1m | ||||||
| Physical | |||||||
| W*D*H(mm) | 425*780*1200 | 600*800*1600 | |||||
| Weight(kg) | 108 | 135 | 230 | ||||
