ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

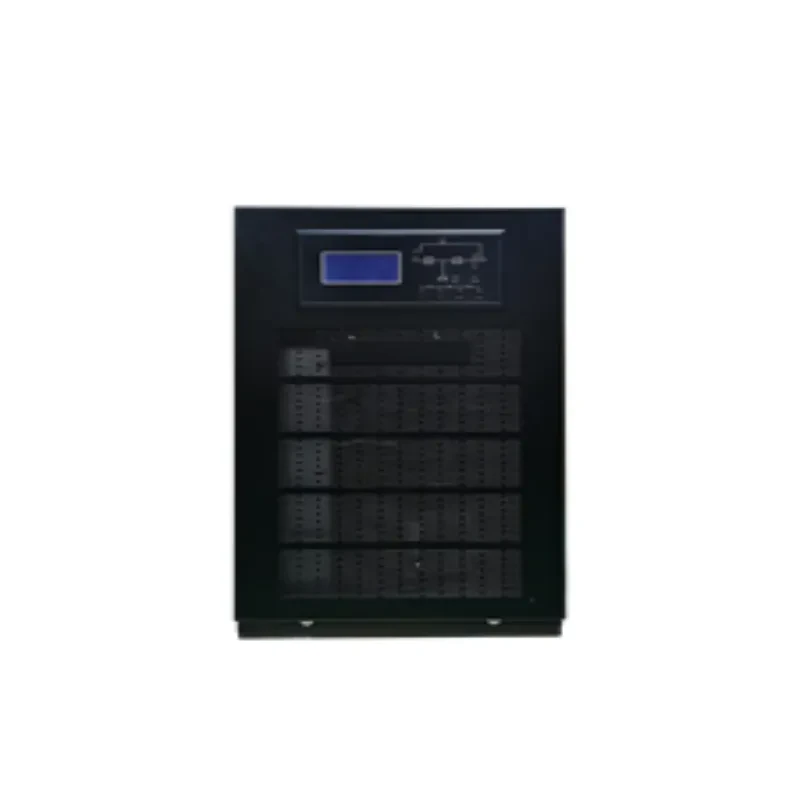

HQ31 10KVA-15KVA Three Phase Online UPS – a versatile solution designed for industrial, medical, and various applications. Engineered with low frequency UPS technology, this 5KVA UPS, expandable from 3 KVA to 30 KVA, stands as a robust industrial UPS and medical UPS, ensures resilient and dependable power delivery, designed to withstand challenging conditions, it excels in resilience against high temperature, humidity, dust, corrosive agents, and vibrations.
| Model | HQ30L | HQ50L | HQ60L | HQ1100L | HQ3110L | HQ3115L | HQ3120L | HQ3130L |
| Capacity | 3kVA | 5kVA | 6kVA | 10kVA | 10kVA | 15kVA | 20kVA | 30kVA |
| Input | ||||||||
| Voltage Range | 1 Phase（L+N+PE）220 ± 15VAC | 3 Phase+N+PE; 380 ± 15% | ||||||
| Frequency Range | 50 ± 5%Hz | |||||||
| Output | ||||||||
| Voltage Accuracy | 1 Phase 220VAC | |||||||
| Frequency Range | 50Hz ± 0.5%（Battery） | |||||||
| Overload | 105% ~ 125%, 10 min；125% ~ 150%, 1 min; ＞150%, switch to the bypass immediately | |||||||
| Power Factor | 0.8 | |||||||
| THDu | ＜3% @ (100% linear load) | |||||||
| Waveform | Pure sine wave | |||||||
| Parallel Current Imbalance | ≤5% | |||||||
| Switching Time | 0ms | |||||||
| Efficiency | 90% | |||||||
| Battery | ||||||||
| Voltage | 96/192VDC | 192VDC | ||||||
| Charging Current | 5A | 5A/10A | ||||||
