ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

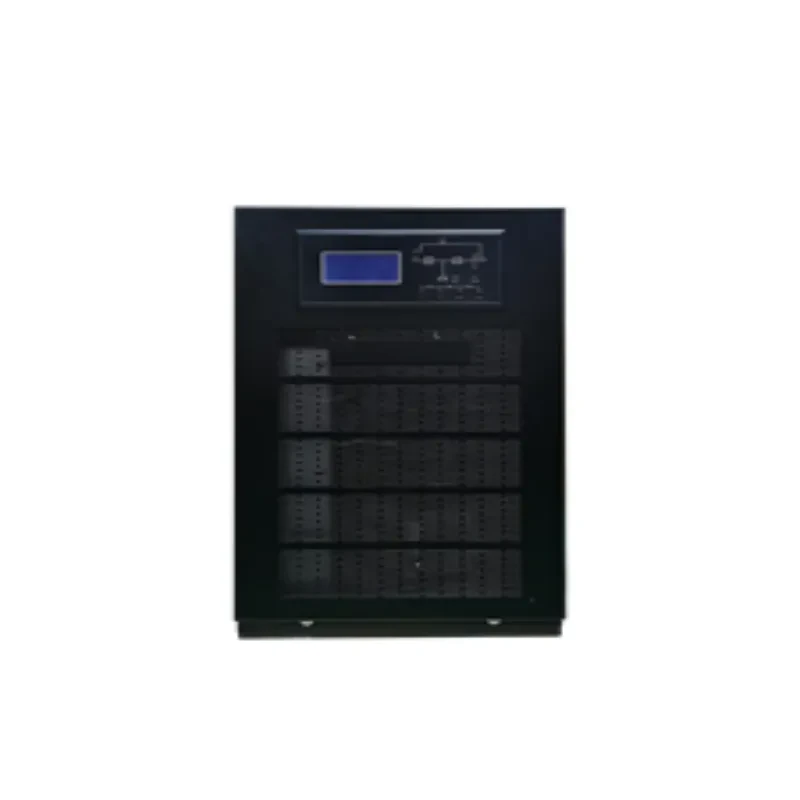

HQ31 20KVA-30KVA Three Phase Online UPS – a versatile solution designed for industrial, medical, and various applications. Engineered with low frequency UPS technology, this 5KVA UPS, expandable from 3 KVA to 30 KVA, stands as a robust industrial UPS and medical UPS, ensures resilient and dependable power delivery, designed to withstand challenging conditions, it excels in resilience against high temperature, humidity, dust, corrosive agents, and vibrations.
| Model | HQ3120L | HQ3130L |
| Capacity | 20kVA | 30kVA |
| Input | ||
| Voltage Range | Phase voltage(220±15%)VAC, line voltage(380±15%)VAC | |
| Frequency Range | 50±5%Hz | |
| Output | ||
| Voltage Accuracy | 1 Phase 220VAC | |
| Stabilization Accuracy | ±1% | |
| Frequency Range | 50Hz±0.5%(Battery) | |
| Waveform | Pure Sine Wave | |
| THDu | <3%(100% linear load) | |
| Parallel Current Imbalance | ≤5% | |
| Power Factor | 0.8 | |
| Overload | 105%~125%, 10min; 125%~150%, 1min;>150%, swith to the bypass immediately | |
| Switching Time | 0ms | |
| Efficiency | 0.9 | |
| Battery | ||
| Voltage | 192VDC | |
| Charging Current | 5A/10A | |
| System | ||
| Display | LCD+LED | |
| Communication | RS232, optional; RS485, dry contact, SNMP | |
| Protection | ||
| Alarm | Power outage, low battery voltage, output overload, UPS abnormality, etc. | |
| Overload | Support | |
| Overheat | Support | |
| Short Circuit | Support | |
| Overvoltage | Support | |
| Undervoltage | Support | |
| Environment | ||
| Operating Temperature | 0~40℃ | |
| Humidity | <95%(non-condensing) | |
| Noise | <55dB@1m | |
| Physical | ||
| W*D*H(mm) | 400*750*900 | |
| Weight(kg) | 210 | 230 |
| *Specifications are subject to change without prior notice | ||
